Easily replace existing prox card readers with this 2-in-1 mobile credential and prox card reader
Issue unlimited mobile credentials for one low monthly cost.
Connect directly to your existing Wi-Fi signal giving you the ability to remotely manage employee, member, and guest access with SimpleAccess web software or app.
What's Included
Inside-out Antenna Enclosure Cap
Single-gang adaptor backplate
Easily Add Convenience and Technology to your Access Control System

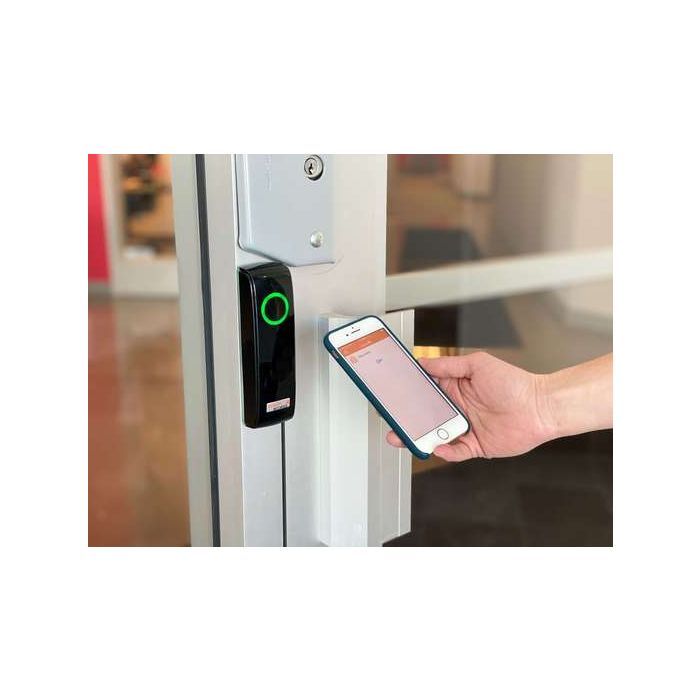

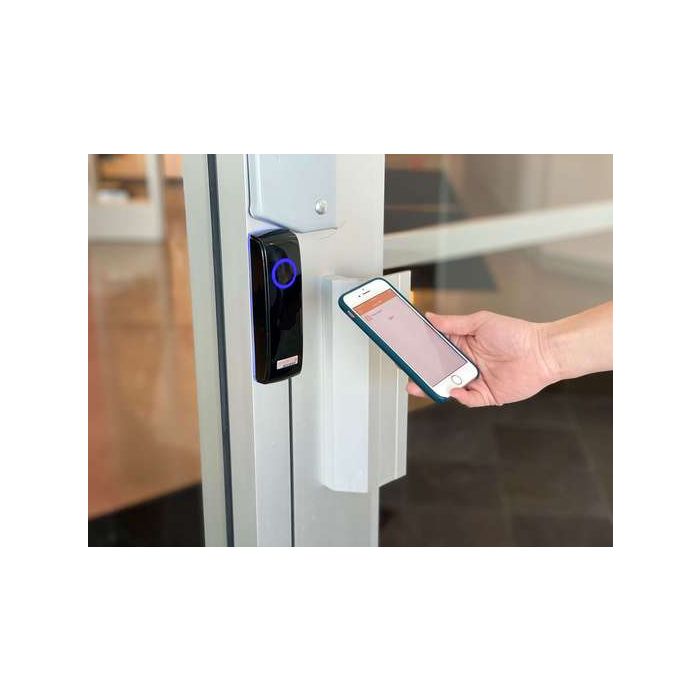

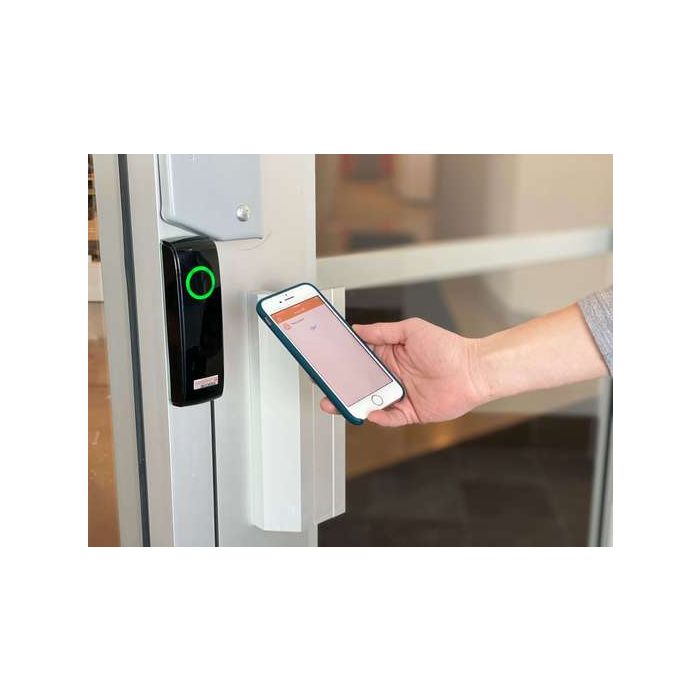

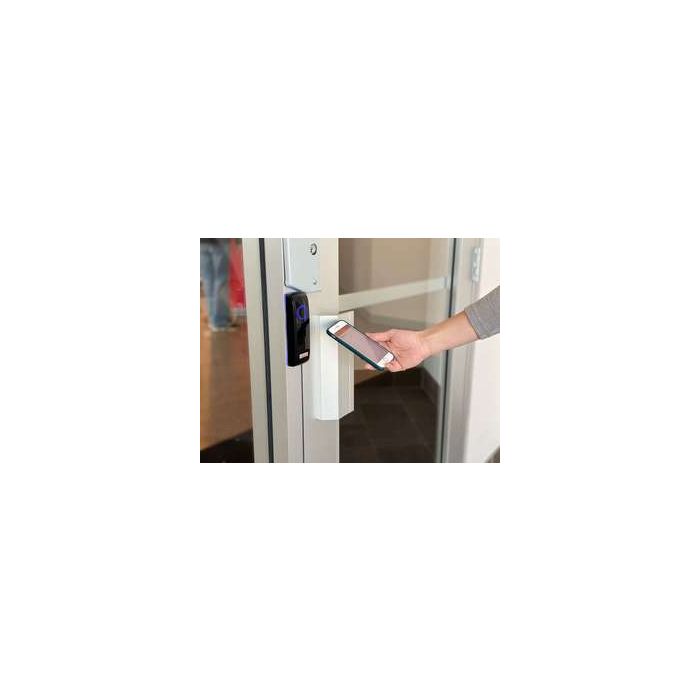

The TrueSecure Mobile Access Card Reader | Prox + BLE | Mobile Access adds the convenience of using mobile devices to access doors. Using digital credentials issued to a mobile device, the SR3 reader senses the user's approach and mobile phone support for hassle-free access.
Modern design - the sleek, glossy design looks great, & enhances your facility's appearance
Access your way - allows access via mobile devices, fobs, and prox access cards for easy upgrades from legacy access control
Hands-free convenience - no fumbling for cards or reaching for your phone
Automatic operation - senses users' motion and mobile device to activate door
Save with predictable costs and unlimited mobile user credentials
Manage remotely - easily add or remove mobile access credentials
Highly secure - state of the art features to ensure safety
Tamper & weather resistant - designed for the extremes
Easy, low-cost professional installation services available
Features:
Works on existing or newly wired access control systems (12VDC, 100mA-200mA)
Compatible with prox access cards (125kHZ frequency)
Compatible with most popular mobile phones (iOS, Android)
Interior or exterior usage
IP65 rated enclosure for water and moisture resistance
Front face LED light (circle) is adjustable
Low power mode on (default) = turns LED off
Low power mode disabled = LED is on
Included:
Inside-out Antenna Enclosure Cap
Single-gang adaptor backplate
*To take advantage of all of this smart locks' Wi-Fi capabilities, a monthly subscription to SimpleAccess web-based software is needed.
Click here or call (833) 413-0212 for more details.
Additional Info
Input:
Prox Card RFID Frequency: 125KHZ Bluetooth BLE Frequency: 2.4 - 2.486 GHZ Reader Bluetooth BLE. Range from 1.5" to 2.5"
Temperature: -40 F (-40 C) to 149 F (65 C) Humidity: 0 - 95% relative humidity, non-condensing Protection Rating: IP65
Enclosure:
Dimensions: 1.7 (W) x 6 (H) x 1.3 (D) in. Weight: 0.49 lbs / 7.8 oz / 222 g (w/backplate)
Power:
Voltage: +5.5 to 16 VDC at the reader. Regulated power supply and 12 VDC at the reader is recommended for best operation. Current Draw: 100mA - 200mA typical, 225mA max peak at 12 VDC low-power mode. Bright light power mode available.
Compliance:
Conforms to UL Standard 294, FCC
